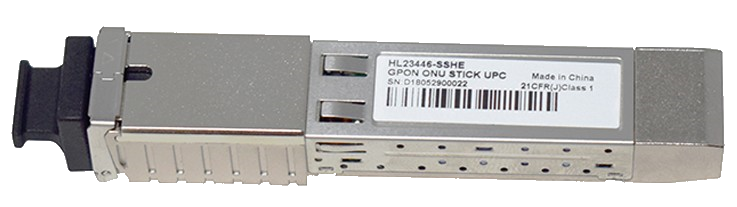

Hardware Specifications
| Vendor/Brand | Hilink |
| Model | HL23446 |
| Chipset | Lantiq PEB98035 |
| Flash | 16 MB |
| RAM | 64 MB |
| CPU | MIPS 34Kc interAptiv |
| CPU Clock | 400MHz |
| System | OpenWRT |
| HSGMII | Yes |
| Optics | SC/APC |
| IP address | |
| Web Gui | ✅ |
| SSH | |
| Telnet | |
| Serial | |
| Form Factor | miniONT SFP |
Possible Clones
- CarlitoxxPro CPGOS03-0490 v1
Firmware is interchangeable with:
- Huawei MA5671A
- Nokia G-010S-P
- FS.com GPON ONU Stick with MAC / SourcePhotonics SPS-34-24T-HP-TDFO
- Dasan H650SFP
- DpOptics D23446
- Photonics SPS-34-24T-HP-TDFO
List of partitions
| dev | size | erasesize | name |
|---|---|---|---|
| mtd0 | 00040000 | 00010000 | "uboot" |
| mtd1 | 00080000 | 00010000 | "uboot_env" |
| mtd2 | 00740000 | 00010000 | "linux" |
| mtd3 | 0061eedc | 00010000 | "rootfs" |
| mtd4 | 00370000 | 00010000 | "rootfs_data" |
| mtd5 | 00800000 | 00010000 | "image1" |
